Features:
1. Low start up speed, high wind energy utilization
2. Amazingly quiet operation with minimal vibration
3. Easy installation, tube or flange connection optional
4. New art of precision injection molding blades with aerodynamic shape and structure, high efficiency.
5. Body of casting aluminum alloy, with 2 bearings swivel makes it stronger.
6. Patented AC PMG with special stator, effectively reduce torque, ensure excellent performance.
7. Anti-rust & anti-corrosion, maintenance-free

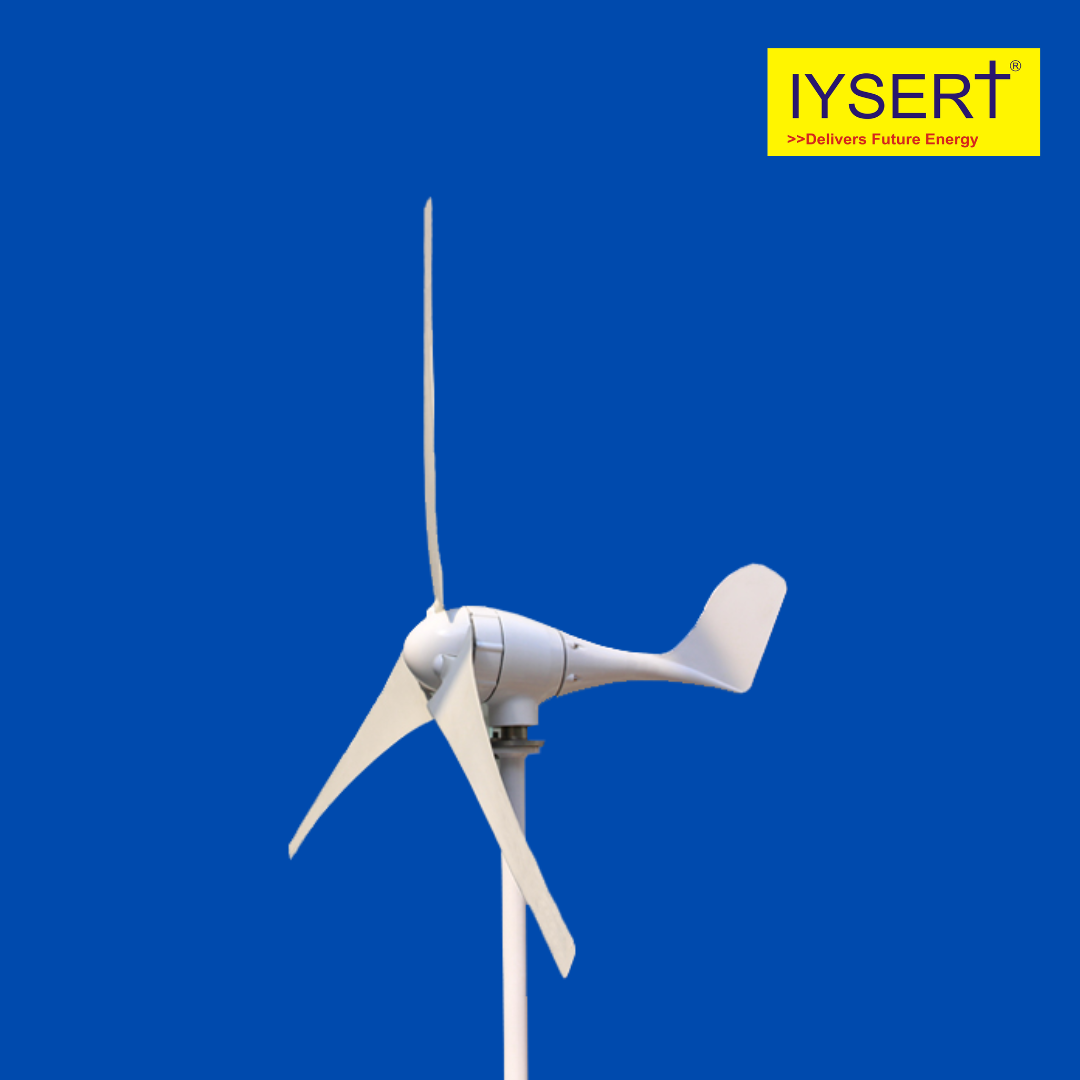

Specification: IW-600M2
| Model | IW-600M2 |
|---|---|
| Rated Output | 600W |
| Peak Output | 750W |
| Rated Voltage | 12/24/48V AC |
| Start-up Wind Speed | 2.5m/s |
| Cut-in Wind Speed | 3m/s |
| Rated Wind speed | 12m/s |
| Survival Max. wind | 45m/s |
| Number of Blades | 3 |
| Rotor Diameter | 1.68m |
| Swept Area | 2.22㎡ |
| Blade Material | Nylon reinforced composite |
| Generator Type | Brushless 3-phase PMA with high performance Neodymium Magnets |
| Generator case | Casting aluminum alloy |
| Controller Type | PWM |
| Over speed control | Automatically adjust windward direction |
| Net Weight | 15kg |
| Tower Connector | Flange or Hoop |
| Flange Size * | DN25 |
| Tower Type * | Guy Cable Tower |
| Tower Size * | 3mX2, 60-3mm |
| Working Temp. range | from -40°C to 60°C |
| Product Life | 15 years |
| Warranty | 1 years |
| Applications | solar & wind hybrid lighting, off-grid wind power system etc. |
| Measurement | 93*37*26cm |
| Gross Weight | 17kg |
